English

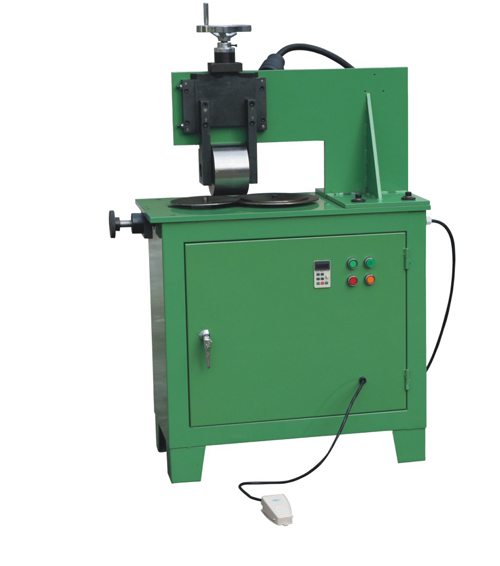

This machine is used to eyelet the reinforced gasket inner and outer diameter
with SS strip. Need to use with KXT E1530 SS strip moulding machine.
Working
range: Diameter 60mm to 4000mm. Width:
95mm, Thickness: 2-8mm
| Specification as following: | |
| STYLE | KXT E1540 Eyelet machine |
| Eyelet Gasket thickness | 2-8mm (Standard machine package include one set model for 3mm, other size need extra order |
| Eyelet Gasket width |
95mm
|
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 60mm |
| Total power | 0.75kw |
| Spindle motor power | 0.4kw |
| Power supply voltage | 380V/220V as request, 3phases |
| Frequency Converter | 0.75G |
| linear speed | 0---120mm/s |
| Machine measurement | 950*450*1300mm |
| Machine net weight | 220 kg |
