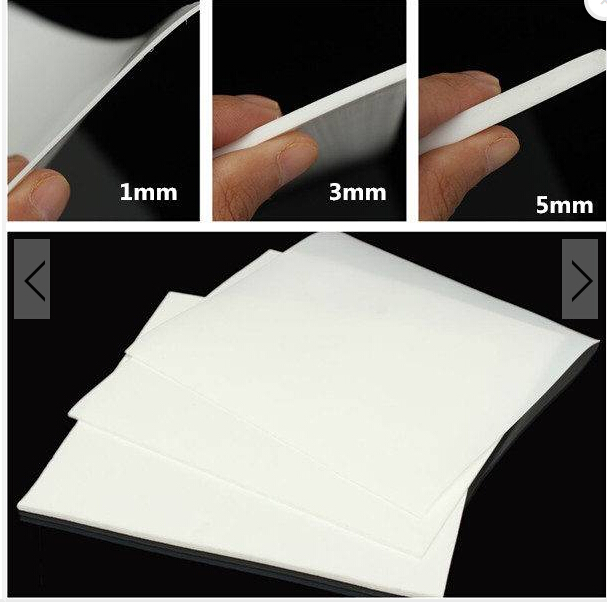

Kaxite Sealing’s PTFE Skived Sheet is produced by skiving (peeling) from a molded PTFE billet, resulting in a thin, uniform film with excellent dimensional stability and surface finish. This high-purity material offers outstanding chemical resistance, low friction, and a wide service temperature range, making it the preferred choice for gasketing, electrical insulation, and anti-stick liners.
Why Kaxite? With ISO 9001 certification and over 25 years of PTFE processing experience, we deliver skived sheets with tight thickness tolerances (±0.02 mm) and consistent quality. Our OEM/ODM services include custom widths, lengths, and adhesive backing options.
| Parameter | Value / Range |
|---|---|
| Material | Virgin PTFE (Polytetrafluoroethylene) |
| Thickness range | 0.25 mm – 8 mm (custom thickness up to 12 mm) |
| Width (standard) | 300 mm, 600 mm, 1200 mm (custom widths available) |
| Length | Cut to length or continuous rolls up to 100 m |
| Density | 2.13 – 2.24 g/cm³ |
| Tensile strength | 2,500 – 4,000 PSI (17 – 28 MPa) |
| Elongation at break | ≥ 250% |
| Dielectric strength | ≥ 40 kV/mm |
| Operating temperature | -200°C to +260°C (peak 300°C) |
| Surface roughness (Ra) | ≤ 0.8 µm (smooth side) |
| Color | Natural (white) – custom colors available on request |
Skiving allows thicknesses as low as 0.25 mm with tight tolerances, whereas molded sheets are generally thicker and less consistent.
The skiving process produces a smooth, glossy surface without flow lines or voids, ideal for critical sealing and electrical applications.
For thin sheets, skiving reduces material waste and machining costs compared to molding and subsequent slicing.
Skived sheets can be produced in continuous rolls, offering longer lengths than molded sheets, which are limited by press size.
Need a custom PTFE skived sheet solution?
Get a free quote – our engineers respond within 24 hours.
