| Specification as following: | ||

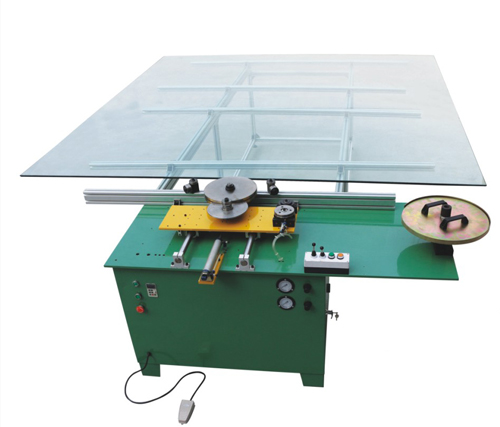

| STYLE | KXT E2500B Manual winder | KXT E2500C Semi-automatic winder |
| Producing ability | SWG with or without IR | SWG with or without IR |
| SWG thickness | 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) |
| Maximum gasket OD | 2500mm or 3200mm | 2500mm or 3200mm |
| Minimum gasket ID | 300mm | 300mm |
| Total power | 2.2kw | 8kw |
| Spindle motor power | 0.75kw | 0.75kw |
| welder power | / | 6kw |
| Power supply | 380V/220V for option, 3 phases | 380V/220V for option, 3 phases |
| linear speed | 0-800mm/s | 0-800mm/s |
| Air compressor | 0.6—0.8 MPA | 0.6—0.8 MPA |
| Frequency Converter | 2.2G | 2.2G |
| PLC | / | xinjie |
| Machine measurement | 3400*2600*980mm | 3400*2600*980mm |
| Machine net weight | 500kg | 550kg |
