Kammprofile gaskets are precision-engineered sealing solutions designed for extreme service conditions. Their unique corrugated-core and soft covering layer construction provides superior sealing performance under high temperatures and pressures. Manufacturing these gaskets to exacting international standards requires specialized, high-precision machinery. This is where dedicated machines for Kammprofile gaskets become critical. These are not standard cutting or forming machines; they are engineered specifically for the intricate process of creating the precise corrugation profile, applying the covering material, and ensuring a flawless final product.
At Kaxite, we have dedicated decades to refining this technology. Our machinery is built to deliver unmatched accuracy, repeatability, and efficiency in Kammprofile gasket production, ensuring your products meet the rigorous demands of industries like oil & gas, petrochemical, power generation, and heavy industrial processing.
The Kaxite range encompasses a complete suite of machines, from initial metal core forming to final quality inspection. Our systems are modular, allowing for integration into both new and existing production lines.

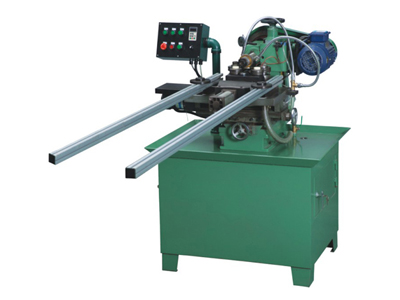

Understanding the technical capabilities is crucial for selecting the right machine. Below are detailed specifications for a core model from our KX-CF Series.
| Parameter | KX-CF 250 Standard Model | KX-CF 400 Heavy-Duty Model |
|---|---|---|
| Max. Metal Strip Width | 250 mm | 400 mm |
| Metal Thickness Range | 0.3 mm - 0.8 mm | 0.4 mm - 1.2 mm |
| Profile Pitch Accuracy | ± 0.05 mm | ± 0.05 mm |
| Forming Speed | 2 - 8 meters/minute (adjustable) | 1.5 - 6 meters/minute (adjustable) |
| Main Motor Power | 5.5 kW | 11 kW |
| Roller Material | High-Carbon Chrome Steel (HRC 58-62) | Tool Steel D2 (HRC 60-62) |
| Control System | PLC with 7" HMI Touchscreen | PLC with 10" HMI Touchscreen, Data Logging |
| Core Dimensions (LxWxH) | 2200 x 1200 x 1500 mm | 2800 x 1600 x 1600 mm |
| Power Supply | 400V / 50Hz / 3 Phase | 400V / 50Hz / 3 Phase |
Q: What is the main advantage of using a dedicated machine for Kammprofile gaskets instead of adapted general-purpose equipment?
A: Dedicated machinery, like that from Kaxite, is designed specifically for the unique stresses and tolerances of forming the Kammprofile. General-purpose machines cannot achieve the consistent pitch accuracy, controlled forming pressure, or integrated adhesive/lamination processes required. Using dedicated equipment drastically reduces material waste, improves product consistency and quality, and increases overall production throughput, providing a faster return on investment.
Q: How difficult is it to change the profile pitch or dimensions on a Kaxite corrugation forming machine?
A: With Kaxite machines, changeovers are streamlined. For pitch changes within a set range, it often involves changing the gear set in the drive train, a process guided by our PLC system. For major profile redesigns, different forming roller sets are required. Our HMI interface stores parameters for different jobs, making setup after a tooling change quick and repeatable, minimizing downtime.
Q: Can your machines process exotic metals like Inconel or Titanium?
A: Absolutely. Our KX-CF Series, particularly the Heavy-Duty models, are built with the power and rigidity to handle high-strength, work-hardening alloys. The key is using the correct roller hardness and surface treatment, along with controlled forming speeds. We provide specific tooling recommendations and machine settings for processing exotic metals to ensure optimal profile quality and tool life.
Q: What kind of maintenance schedule do these machines require?
A: Kaxite machines are designed for industrial durability with minimal routine maintenance. Daily tasks include cleaning and visual inspection. Weekly checks involve lubricating guide rails and checking for loose fittings. The primary periodic maintenance is for the high-wear forming rollers, which, depending on material processed, may require re-grinding or replacement after several thousand production hours. We provide detailed maintenance manuals and schedules with every machine.
Q: Does Kaxite provide training and technical support for machine operation?
A> Yes, comprehensive support is a cornerstone of our service. We offer on-site installation and commissioning, followed by hands-on operator and maintenance technician training. We provide detailed manuals, instructional videos, and access to a dedicated technical support team via phone and email. We also offer annual service contracts for preventive maintenance and priority support.
Q: Can the production line be automated further with material handling robots?
A> Certainly. Kaxite machines are designed with automation in mind. Standard models feature PLC interfaces (Profibus, Ethernet/IP) that allow for easy integration with automated material loaders/unloaders, conveyor systems, and robotic arms. We can work with you to design a semi- or fully-automated production cell to maximize labor efficiency and output.
Q: How does the quality of the finished gasket from a Kaxite machine compare to international standards like API 601, ASME B16.20, or DIN EN 12560?
A> The consistency and precision of Kaxite machinery are directly aimed at meeting and exceeding these critical standards. The precise control over profile geometry, lamination pressure, and cutting accuracy ensures that gaskets produced on our equipment consistently comply with the dimensional, density, and performance requirements of API, ASME, DIN, and other international specifications. Our inspection systems provide the documentation trail often required for certification.
